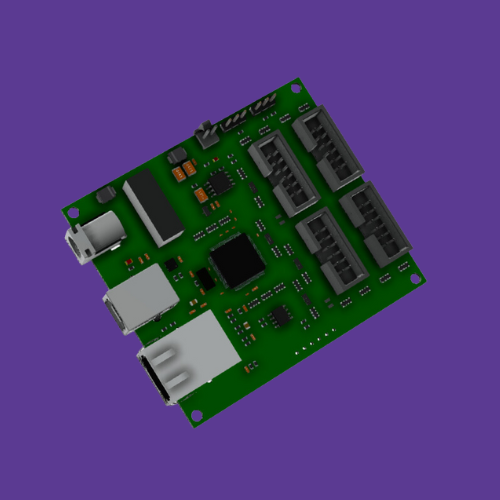

Numato Lab’s 32 Channel Ethernet Pluggable GPIO Module (NL-ETHG-C-032) is a low cost easily deployable solution for connecting your PC to other electronic circuitry through a network. This GPIO module can be accessed through a simple web interface, Telnet, or HTTP commands. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as PuTTY, TeraTerm for controlling the module with a simple set of human-readable commands through TELNET, HTTP, or through an easy-to-use Web interface. For power users, this module can be controlled by writing programs in various programming languages.
Features
- 32 TTL (3.3V) compatible GPIOs
- 11 Analog input channels (Multiplexed with GPIOs)
- 10 Bit Analog input resolution
- All GPIOs can be individually configured as input or output
- GPIO contacts available on easy to plug headers
- Can be controlled by using standard serial console applications through TELNET, web-interface, HTTP or custom applications
- readall/writeall support to read/update all GPIOs with a single command
Applications
- Building automated test fixtures
- Add more IOs and Analog channels to industrial/modular computers
- Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards
- Add IOs to Android-based systems (Smartphones, Tabs and custom devices)
Specifications
| Attribute | Value |
|---|---|
| Number Of GPIOs (Max) | 32 |
| IO Header | With Header, Header On Top, Header on Bottom, Without Header |
| Analog Inputs(Max) | 11 (Multiplexed With IOs) |
| Host Interface | Ethernet |
| Analog Input Resolution | 10 Bits |
| Multiplexed Analog Inputs | Yes, with Digital IOs |
| Mating product (Connector) | Molex : 22-55-2122, DF11-12DS-2DSA(05) |
| Package Contents | NL-ETHG-C-032 |
| Warranty | Standard |
| RoHS | Yes |
