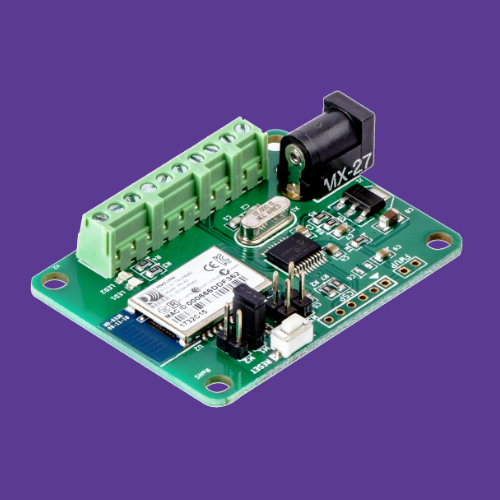

Numato’s 8 Channel Bluetooth GPIO module is a low cost easily deployable solution for connecting your PC to other electronic circuitry through Bluetooth. A USB Bluetooth Dongle or Bluetooth integrated PC/Laptop would be sufficient to communicate with this device. 8 TTL compatible GPIOs available and 6 Analog input channels (shared with GPIOs).
Features
- 8 TTL compatible GPIOs available.
- 6 Analog input channels (Multiplexed with GPIOs)
- 10 Bit Analog input resolution
- All GPIOs can be individually configured as input or output.
- 25ma Source/Sink capacity.
- Can be controlled by using standard serial console applications or custom applications.
- Onboard controller can be reprogrammed for custom applications
Applications
- Home Automation
- Lighting Control
- Garden Equipment Control
- Industrial Automation
- Test Fixtures
- DIY and Hobby
Specifications
| Attribute | Value |
|---|---|
| Weight | 0.7 lbs |
| Dimensions | 5 × 3 × 1 in |
| Product Dimensions | 2.22 x 1.68 x 0.70 in |
| Number Of GPIOs (Max) | 8 |
| Number Of Analog Inputs | 6 (Multiplexed with IOs) |
| Communication | Bluetooth |
| RoHS: | Yes |
Sample Code
| Language/Technology | IDE/Compiler | Type | OS | Download |
|---|---|---|---|---|
| C | VCExpress2008 | Command Line | Windows | Download |
| C | VCExpress2010 | Command Line | Windows | Download |
| Visual Basic | VBExpress2008 | GUI | Windows | Download |
| Visual Basic | VBExpress2010 | GUI | Windows | Download |
| Visual Basic | Visual Basic 6 | GUI | Windows | Download |
| C | Visual C++ 6 | Command Line | Windows | Download |
| Python | Python | Command Line | Windows | Download |
| Java | NetBeans | Command Line | Any | Download |
| C# | Visual Studio 2012 | GUI | Windows | Download |
| AutoHotkey | AutoHotkey | GUI | Windows | Download |
