What is the Analog Discovery Studio?
The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere.
Studio Learning
With lab spaces decreasing and student enrollment increasing, many institutions are choosing studio learning as a supplement to traditional laboratories, creating a need for a portable test and measurement bench that can support all types of circuits projects. With an Analog Discovery Studio, students can continue their hands-on learning in the library, office hours, a tutoring center, a classroom, at home or even in a coffee shop.

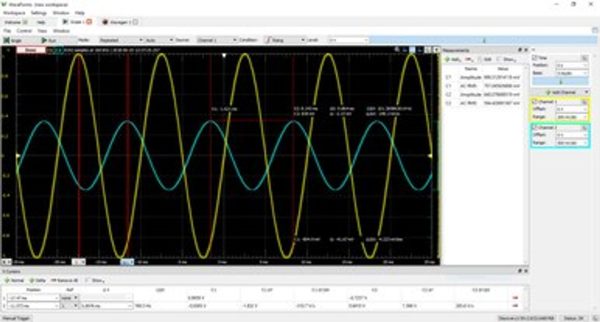

The Analog Discovery Studio supports hands-on learning for any student, and is available with free Mac, Linux, and Windows compatible software, WaveForms.

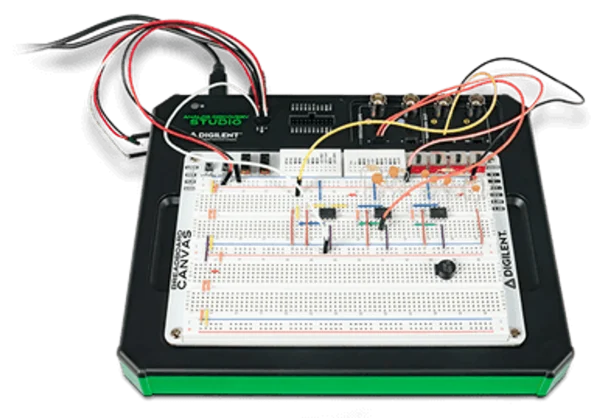

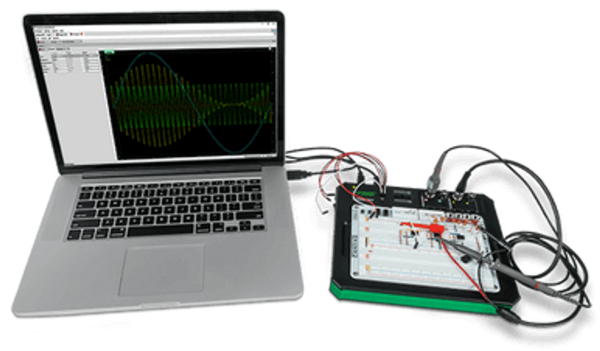

The Analog Discovery Studio in use
Portable Design

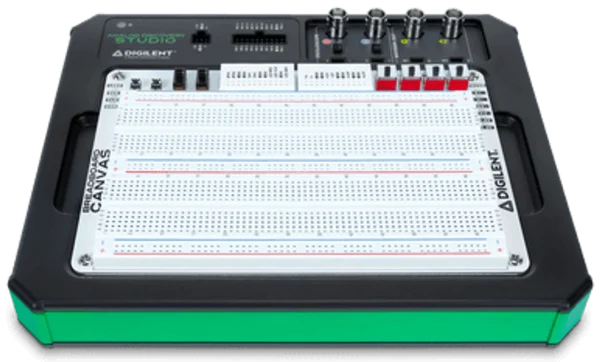

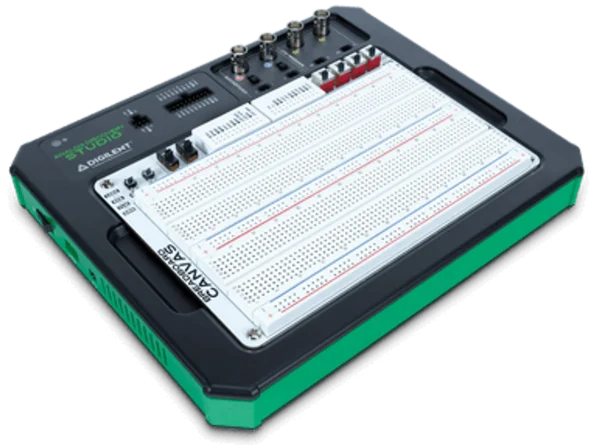

The Analog Discovery Studio is designed to be a compact alternative to a stack of benchtop equipment. Its durable enclosure measures 1.25 x 9.25 x 7.5 inches and fits on a bench, desktop, or backpack. Students can access the Oscilloscope and Waveform Generators via breadboardable MTE cables, or industry standard BNC cables, and the Logic Analyzer, Pattern Generator, and Triggers can be accessed via MTE cables.

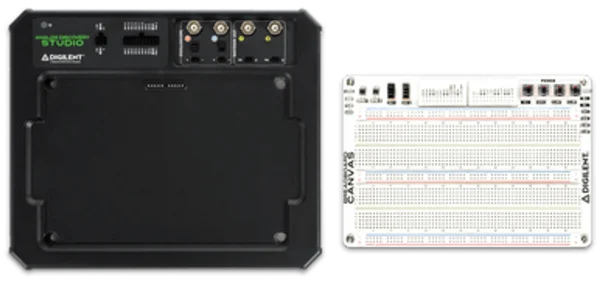

Circuits or designs can be built on the included, magnetically connected Breadboard Canvas and conveniently swapped out or removed for transit, making the transition from working in the lab to working at home as seamless as possible. The Breadboard Canvas also includes power supply outputs controlled by physical switches, common I/O built-in, and a large breadboardable surface. The Breadboard Canvas and the cost-optimized Blank Canvas can be purchased separately in the event that an extra is needed, or if the breadboards wear out.
Features:
Analog Inputs:

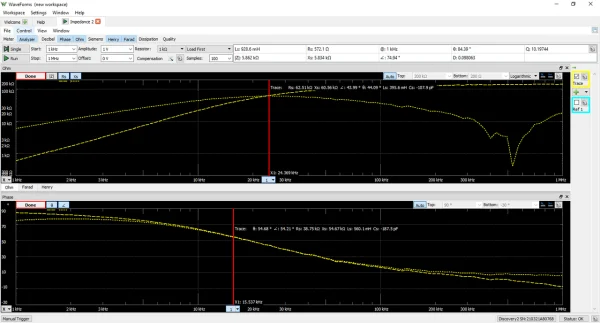

Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
Two analog input channels, accessible through BNC or MTE connectors
Channel type: differential (with MTE) or single-ended (with BNC)
Analog bandwidth with BNC cables: 30+ MHz @ 3dB
Analog bandwidth with MTE flywires: 9 MHz @ 3dB
Input range ±25 V (±50 V diff)
Input protected to ±50 V
14-bit resolution
Operate at 100 MS/s
Power Supplies:
12 volt supply: 12V ±5%; 0.2 Amps max
-12 volt supply: -12V ±5%, 0.2 Amps max
5 volt supply: 5.0 V ±5%; 1.0 Amps max
3.3 volt supply: 3.3 V ±5%; 1.0 Amps max
V+ and V- rails: 0.5 V to 5 V (V+), and -0.5 V to -5 V (V-)
Maximum power output: 2.1W for each supply
Maximum current output: 700mA for each supply.
Note: Remove the protective foam from underneath the Breadboard Canvas before using the power supplies
Analog Outputs:
Used in the Waveform Generator and Network Analyzer
Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
AC amplitude (max): ±5 V
Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
Operate at 100 MS/s
Product Compliance:
HTC: 8471809000
ECCN: EAR99
Digital Inputs and Outputs:
Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
Channels: 16
Input logic standard: LVCMOS (1.8/3.3 V, 5 V tolerant)
Output logic standard: LVCMOS (3.3 V, 12 mA)
What’s Included:
Analog Discovery Studio (410-384):
Analog Discovery Studio
Breadboard Canvas
15 V 2.4 A power supply
USB A to B cable
A set of Analog Discovery Studio MTE Cables
Analog Discovery Studio Cable Bundle (471-031):
Analog Discovery Studio
Breadboard Canvas
15 V 2.4 A power supply
USB A to B cable
A set of Analog Discovery Studio MTE Cables
Two BNC to mini-grabber cables
A pair of BNC to oscilloscope probes
Analog Discovery Studio Case Bundle (471-037):
Analog Discovery Studio
Breadboard Canvas
15 V 2.4 A power supply
USB A to B cable
A set of Analog Discovery Studio MTE Cables
Two BNC to mini-grabber cables
A pair of BNC to oscilloscope probes
Analog Discovery Studio Case
Recommended Products:
Digital Trainer Canvas (New!)
The Digital Trainer Canvas is a replaceable and removable prototyping surface for the Analog Discovery Studio and features an array of common digital circuit components like switches and LEDs, making it well-suited for introductory coursework teaching digital electronics.
FPGA Board Adapter Canvas
Previously known as the Interposer Canvas, the FPGA Board Adapter Canvas is designed to securely attach an FPGA development board to the Analog Discovery Studio for a complete digital logic test system.
Analog Discovery Canvas
The Analog Discovery Canvas provides a convenient and portable prototyping surface that can be used with the Analog Discovery 3 or Analog Discovery Studio.
Blank Canvas
The Blank Canvas provides a protoboard like interface for building and testing circuits of all kinds with the Analog Discovery, conveniently integrating the power supplies and some common IC packages into the same Canvas.
Analog Discovery Studio Plastic Case
