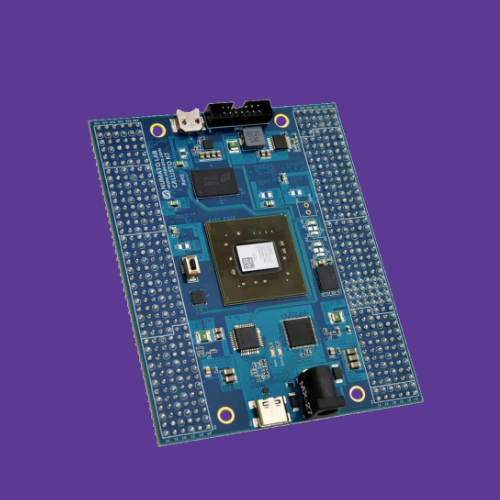

Callisto K7 USB 3.1 FPGA Module

Callisto K7 is an easy-to-use FPGA Module featuring the AMD Kintex 7 FPGA with 4Gb DDR3 SDRAM. This board contains the AMD XC7K410T– FBG676 FPGA. The high-speed USB 3.1 interface (USB-C connector) provides a fast and easy configuration download to the onboard SPI flash. There is no need for a programmer or special downloader cable to download Bitstream to the board. The FPGA Module also provides easy access to JTAG signals on a standard Xilinx Platform Cable compatible header. Callisto K7 provides the user with the flexibility of adding their own peripherals through IO Expansion Headers.

Features

• FPGA: AMD XC7K160T in FBG676 package
• DDR3: 4Gb DDR3 (MT41J256M16HA-125:K or equivalent)
• Flash memory: 512 Mb Quadbit SPI flash memory (S25FL512SDSBHV210/IS25LP512M-RHLE)
• 1 x 100MHz CMOS oscillator
• USB 3.1 Gen1 @5Gbps (USB Type-C connector)
• Onboard voltage regulators for single power rail operation
• 12V DC power supply
• A Push Button for the reset pin
• JTAG header for programming and debugging
• 274 IOs for user-defined purposes
• All user IOs are length matched and can be used as differential pairs

Applications

• Product Prototype Development
• Communication Device Development
• Accelerated Computing Integration
• Development and Testing of Custom embedded processors
• Signal Processing
• Educational tool for Schools and Universities
