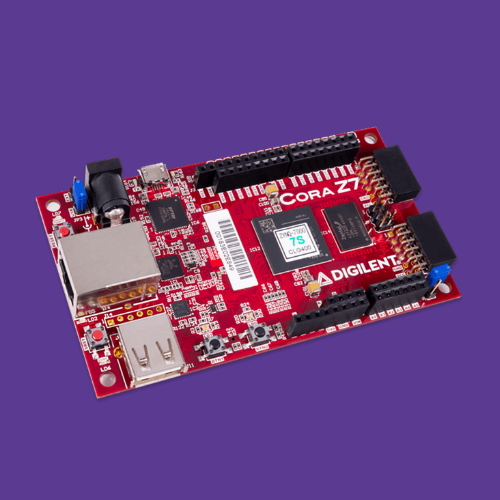

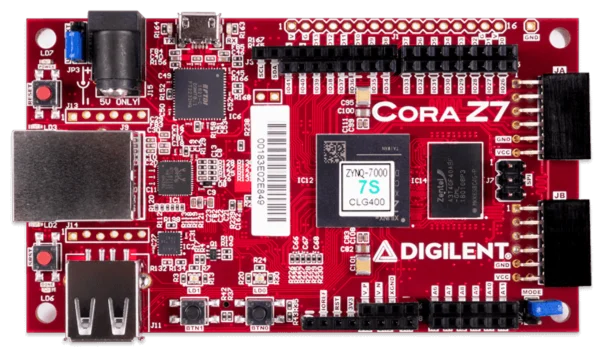

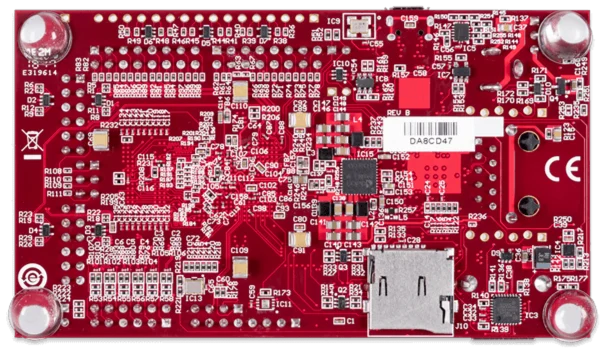

Cora Z7: Zynq-7000 Single Core for ARM/FPGA SoC Development

The Cora Z7 is our most cost-optimized SoC development board featuring the power and flexibility of Xilinx’s Zynq®-7000 SoC family.

Featuring Arduino™ headers, 1Gbps Ethernet, an onboard analog-to-digital converter, and Pmod ports, the Cora Z7 can be used in a variety of embedded applications. The Zynq-7000(S) SoC family integrates the software programmability of an ARM®-based processor with the hardware programmability of an FPGA, delivering cost-optimized system integration. At such a friendly price point, the Cora Z7 is a great development board to get started with Zynq-based designs.

The Cora Z7 is supported by Xilinx’s Vivado ML, including the free Vivado ML Standard Edition. You can also interact with the processing system (PS) with Xilinx’s Vitis Unified Software Platform and PetaLinux Tools.

The ARM Cortex™-A9 processor on the Cora Z7-07S is single-core.

Features:

*The Cora Z7-10 variant is no longer in production and now retired in our store.

• 667 MHz Cortex-A9 processor with tightly integrated Xilinx FPGA (Single-core)
• 512 MB DDR3 memory
• Arduino shield and Pmod connectors for add-on hardware devices
• USB and Ethernet connectivity
• Large array of general purpose input/output ports for any number of different custom solutions
• Small form factor and mounting holes
• Programmable from JTAG and microSD card

• Product Compliance:
  • HTC: 8473301180
  • ECCN: EAR99

What’s Included:

• Cora Z7-07S
  • Receive a free USB A to Micro-B cable with your Cora Z7 purchase! (Must have the USB cable and Cora Z7 in your cart for the discount).
• Custom Digilent cardboard box with protective foam inserts
