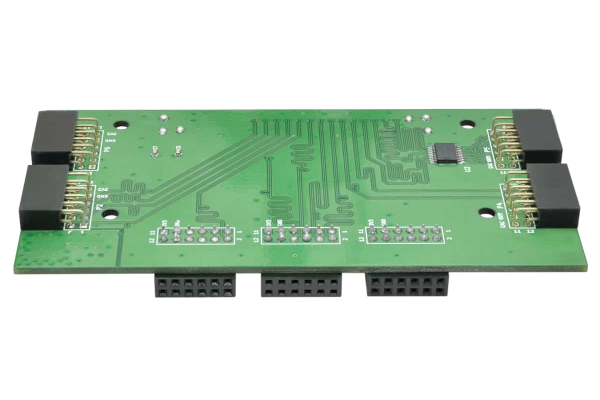

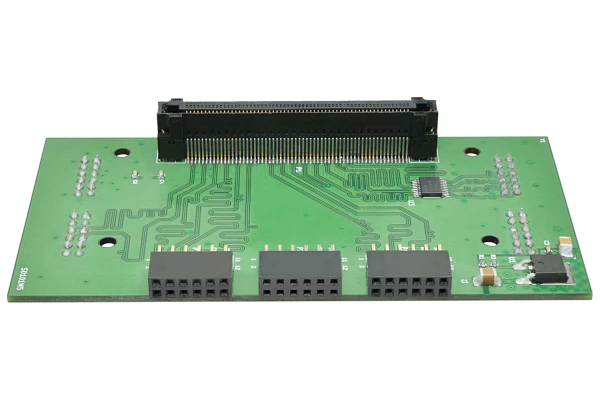

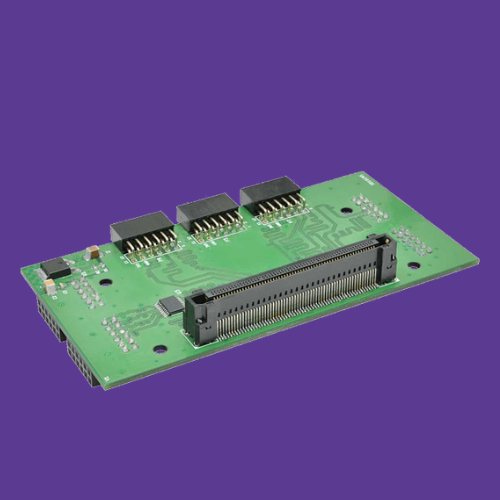

This board is an IO breakout solution for Galatea PCI Express Spartan 6 FPGA Development Board. This product allows Galatea’s IOs to be broken out into smaller 2×6 headers that would facilitate easy attachment of other peripheral expansion modules. The board features seven 2×6 expansion connector. Please note that the external power connector on Galatea PCI Express FPGA Development Board will not be accessible when this module is placed on the high-speed IO connector P5.
Features
- 7 (2×6)Expansion connectors
- Onboard 1.5V to 3.3V Converter
- 56 IOs
- Can be attached to either side of Galatea FPGA board
Specifications
| Attribute | Value |
|---|---|
| Weight | 0.1 lbs |
| Dimensions | 5 × 3 × 1 in |
| Product Dimensions | 4.37 x 2.23 x 0.43 in |
| Number of Expansion Connectors | 7 |
| Number of IOs (Max) | 56 |
| Onboard 1.5V to 3.3V Converter | Yes (TXB0108) |
