Name: Genesys ZU: Zynq Ultrascale+ MPSoC Development Board - My Blog
Price: 181545.00 INR
Availability: InStock

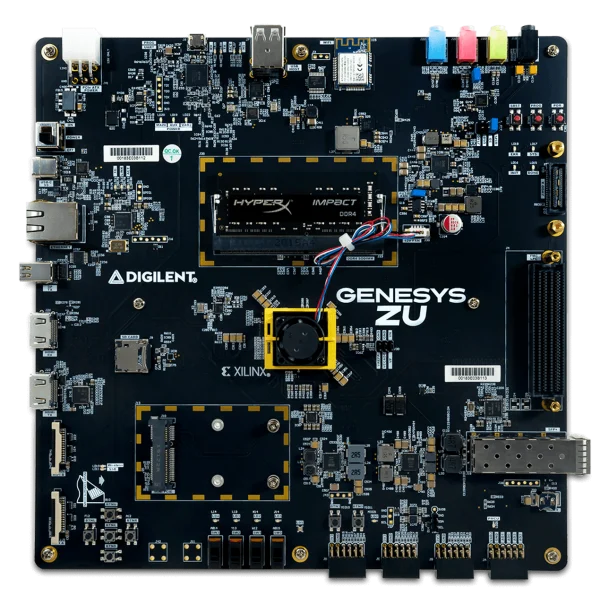

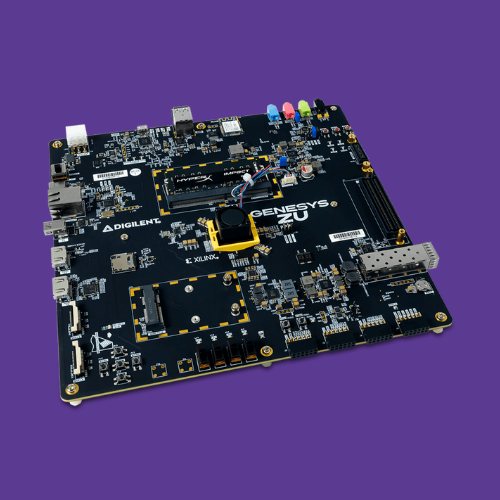

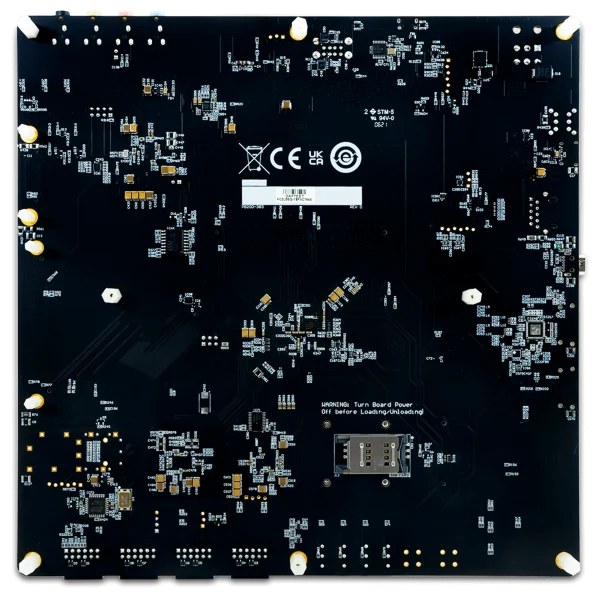

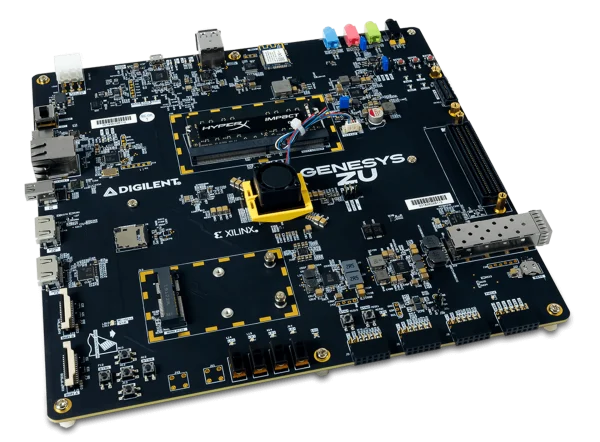

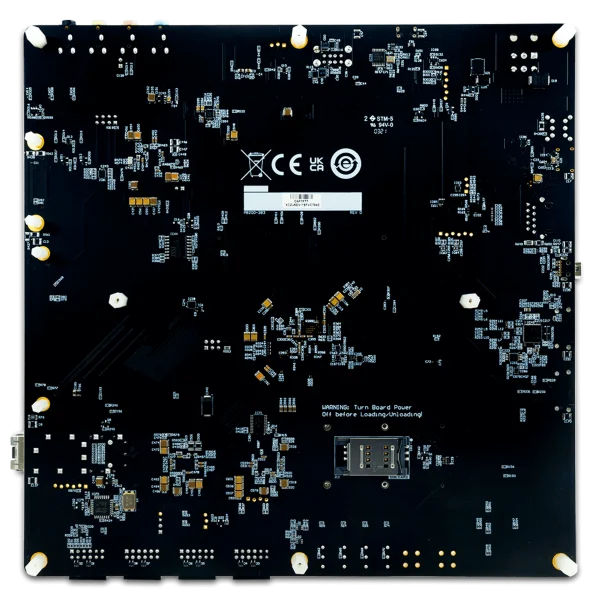

The Digilent Genesys ZU is a standalone Zynq UltraScale+ EG/EV MPSoC development board, designed to provide an ideal entry point by combining cost-effectiveness with powerful multimedia and network connectivity interfaces. There are two variants of the Genesys ZU: 3EG and 5EV. These two variants are differentiated by the MPSoC chip version and some peripherals. As compared to the 3EG, with the 5EV you get faster DDR4, more FPGA fabric, a video codec, and GTH transceivers allowing HDMI Source, Sink and 10G SFP+. Both variants support multiple multimedia and network interfaces with an excellent mix of on-board peripherals, upgrade-friendly DDR4, Mini PCIe and microSD slots, along with multi-camera and high-speed expansion connectors which are designed to support a wide range of use-cases. The Genesys ZU is primarily targeted towards Linux-based applications that facilitate access to Wi-Fi, cellular radio (WWAN), SSD, USB SuperSpeed and 4K video. Two different specialized ports, including Pmod and high-speed SYZYGY-compliant expansion module ports for our new Zmods, enable flexible expansion and easy access to a wide ecosystem of add-on modules, perfect for silicon evaluation and rapid prototyping.

The Zynq UltraScale+ 3EG devices include specialized processing elements needed to excel in next-generation wired and 5G wireless infrastructure, cloud computing, AI, and Aerospace and Defense applications. 5EV devices are designed with high-definition video in mind, and are ideal for multimedia, automotive ADAS, surveillance, and other embedded vision applications.

The Xilinx Zynq UltraScale+ XCZU3EG and XCZU5EV are supported by Vivado Design Suite, including the free Vivado ML Standard Edition (formerly Vivado WebPACK™).

Features:

Features
Zynq Ultrascale+	XCZU3EG-SFVC784-1-E / XCZU5EV-SFVC784-1-E 256 Mbit QSPI Flash memory on-board USB FTDI interface for programming and debugging MicroSD card interface, supporting SDR104 mode Board status and diagnostics using and on-board platform MCU 154K logic cells / (256K) 7.6 Mb Block RAM (5.1 Mb) 360 DSP Slices / (1,248) 3 clock management tiles / (4) DDR4, 4GB, 1866 MT/s (2133 MT/s), upgradeable memory (ZU-5EV variant value where different)
Application Processor	Quad-core ARM Cortex-A53 MPCore up to 1.5 GHz
Real-time Processor	Dual-core ARM Cortex-R5 MPCore up to 600 MHZ
Graphics Processor	Mali^TM-400 MP2
Video Codec	H.264/H.265 (*only on 5EV variant)
Peripheral Connectivity	USB Type-C 3.1 Gen1 Dual-Role Device MiniPCIe / mSATA: dual slot, Half-/Full-size USB 2.0 Host: 2x Type-A
Network Connectivity	2.4GHz On-board Wi-Fi Ethernet 1G w/ IEEE 1588 WLAN / WWAN / LoRa (option: MiniPCIe) SFP+ 10G Ethernet (*only on 5EV variant)
Storage	Main memory: DDR4, 4GB, 1866 MT/s (*2133 MT/s), upgradeable 104 MB/s SD SSD option: mSATA ISSI 256 Mib SNOR Flash
Multimedia	1.2a Dual-Lane DisplayPort 2 x MIPI/Pcam Dual-Lane Audio Codec HDMI Source (only on 5EV variant) HDMI Sink (only on 5EV variant)
Expansion	1 x Zmod port following the SYZYGY Standard interface specification 4 x Pmod ports 1 x FMC expansion connector 1 x FMC Gigabit (*only on 5EV variant)
User I/O	4 PL-connected LEDs 1 MIO-connected LED 5 PL-connected buttons 2 MIO-connected buttons 4 PL-connected switches
Product Compliance	HTC: 8471500150 ECCN: 5A992

What’s Included:

Choose between the Genesys ZU-3EG or 5EV
12V, 8A power supply
IEC cable with European plug
IEC cable with US plug
USB A to micro B programming cable
USB A to Type C cable
microSD card with the Out-of-Box Petalinux Image (loaded into the Genesys ZU’s microSD card slot), with a case
Pre-installed user-upgradable DDR4 Memory, see the Genesys ZU Reference Manual, which can be found through the Support tab, for more information.
