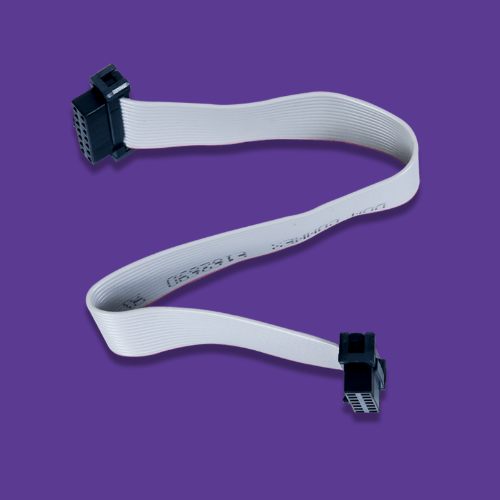

This 6″ ribbon cable incorporates multiple signal-ground pairs and facilitates error-free connections with a 2 mm pitch header. To take advantage of the ribbon cable, a mating connector must be incorporated into the target system. Perfect for connecting to the Pmod LVLSHFT.
Features:
- 6″ Xilinx JTAG 2×7 pin cable
- Ribbon Cable: 14 conductor, 1.0 mm center, round conductor flat cable, 28 AWG (7 x 36) stranded conductors, gray PVC with pin 1 edge marked.

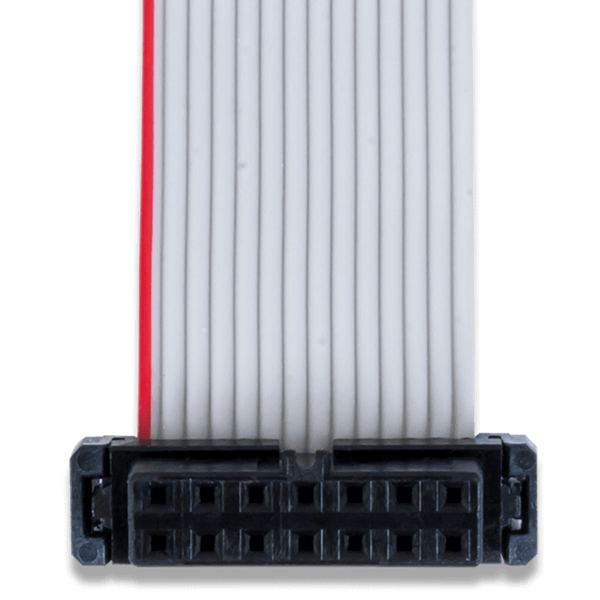

- 2 mm pitch ribbon female polarized connector, IDC connection to ribbon. Contacts are beryllium copper plated, 30 micro-inches gold plating over 50 micro-inches nickel. The connectors mate to 0.5 mm square posts on 2 mm centers.
What’s Included:
- One JTAG 2×7 Ribbon Cable
