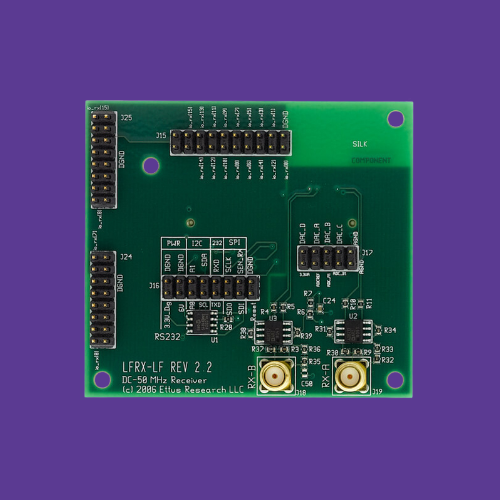

LFRX Daughterboard for Ettus USRP N210: 0-30 MHz Rx

The LFRX daughterboard is a low-cost daughterboard that provides direct access to the ADC inputs. The board can accept real-mode or quadrature signals from DC to 30 MHz. The LFRX is ideal for applications using an external front end providing relatively clean signals within operable bandwidth. High-speed opamps couple each RF input to a single channel of the USRP device’s ADC. The signals sampled by the ADC are manipulated in the FPGA, and can be processed as two real-mode signals, or a single I-Q pair.

The LFRX does not include a local oscillator or downconverter.

Features:

Receive Only
Frequency Range: 0 – 30 MHz
Channel Count: 2 RX IF or 1 IQ
Bandwidth: 30 MHz/Channel

What’s Included:

Ettus LFRX Daughterboard
