Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

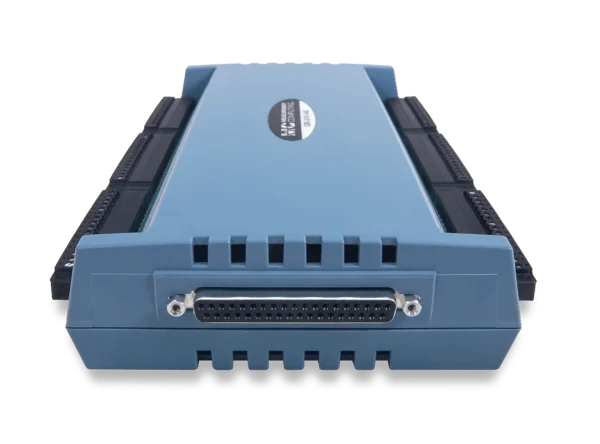

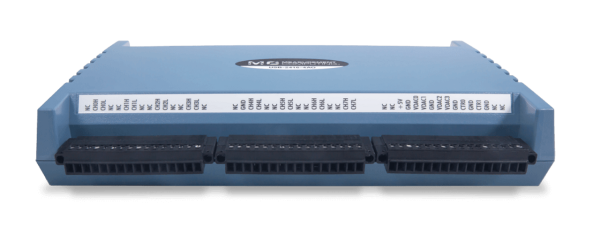

The USB-2416-4AO is ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions.
The USB-2416-4AO features 32 SE/ 16 DIFF, 16-bit analog inputs for measuring voltage or thermocouples measurements (thermocouples are measured in DIFF mode), 1 kS/s sample rate, four analog outputs, eight digital I/O, and two counter inputs.
AI-EXP32 is an optional expansion module that provides an additional 32 SE/16 DIFF analog inputs and 16 digital I/O.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.
Features:
USB-2416-4AO: 32 SE/ 16 DIFF analog inputs
USB-2416-4AO and AI-EXP32: 64 SE/ 32 DIFF analog inputs
24-bit resolution
1 kS/s sample rate
Supports thermocouple types J, K, R, S, T, N, E, and B
±20 V, ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV, ±156.25 mV, ±78.125 mV input ranges
Four 16-bit analog outputs
Eight digital I/O (24 digital I/O when using AI-EXP32)
Two counter inputs
What’s Included:
Choose between USB-2416-4AO standalone, USB-2416-4AO and AI-EXP32, or AI-EXP32 standalone
Mounting plate for connecting USB-2416-4AO and AI-EXP32 (included with AI-EXP32)
USB cable
Power Supply, 5 VDC Output
Field Changeable AC Input Plug (USA style is included, other types may be purchased separately)
Printed insert: DAQami Quick Start
MCC packaging assembly/foam, etc.
