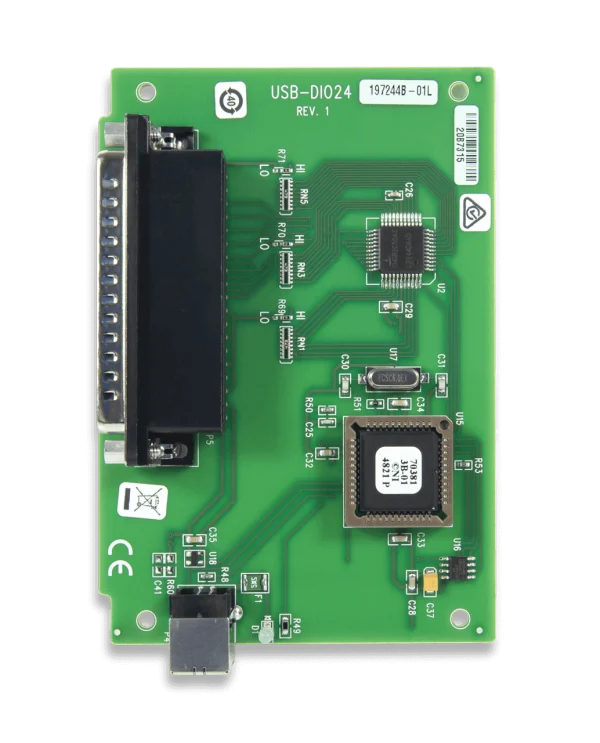

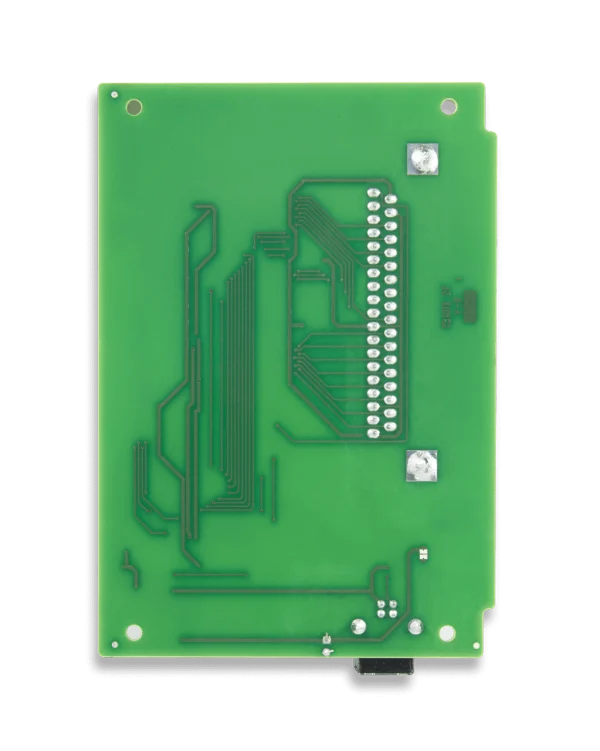

The USB-DIO24 Series of digital devices provide logic-level, bidirectional digital I/O and counter operation. Both devices feature 24 bits of digital I/O and one 32-bit external event counter. The devices are powered by the +5 volt USB supply. All I/O connections are made to a 37-pin connector.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.
OEM/Embedded Customers- please contact our dedicated application engineer for volume pricing and assistance with your application. Visit our OEM Board-only page for more product offerings.
Features:
The 37-pin connector provides 24 digital I/O, one counter, six ground, and two power connections.
The digital I/O port is configured as two 8-bit and two 4-bit ports based on an 82C55 mode 0 emulation. You
can configure each port independently for input (default) or output.
The CTR signal is the input to the 32-bit external event counter.
USB-DIO24/37 digital type: 82C55
USB-DIO24H/37 digital type: 74FCT244 (output), 74ACT373 (input)
USB-DIO24/37 sink / source: 2.5mA
USB-DIO24/37 sink / source: 64 mA / 15 mA
5.5 V max inout voltage
What’s Included:
USB-DIO24/37 or USB-DIO24H/37
USB cable
Printed insert: DAQami Quick Start
MCC packaging assembly/foam, etc.
