PowerBRICKS: Breadboardable Dual Output USB Power Supplies

Every circuit needs a power supply, but benchtop power supplies are bulky and are often overkill for simple projects where cost or portability are a priority. The PowerBRICK family provides a low cost solution that can be powered by the USB port on any computer, ideal for class where each student needs their own supply for a lab or project. Smaller than a USB stick, the PowerBRICKs can be tucked away in a backpack or toolkit and used wherever a simple power supply is necessary, removing power supplies as a barrier to remote learning.

The PowerBRICKS come in the four most commonly used voltages: 12V, 9V, 5V, or 3.3V and provide both a positive and negative voltage. They designed to plug directly onto a breadboard for simple, low profile integration. Powered by 5V from a standard USB or the Vin pin, each PowerBRICK can provide up to 1.1W of power. PowerBRICKS can also be daisy-chained to provide more than one +/- Vout pair, but total power output for the entire chain should not exceed 2.2W.

Features:

• Four male pines for +Vin, -Vout, +Vout, and GND
• Micro USB Connector for input Voltage
• Pin Spacing compatible with a standard breadboard

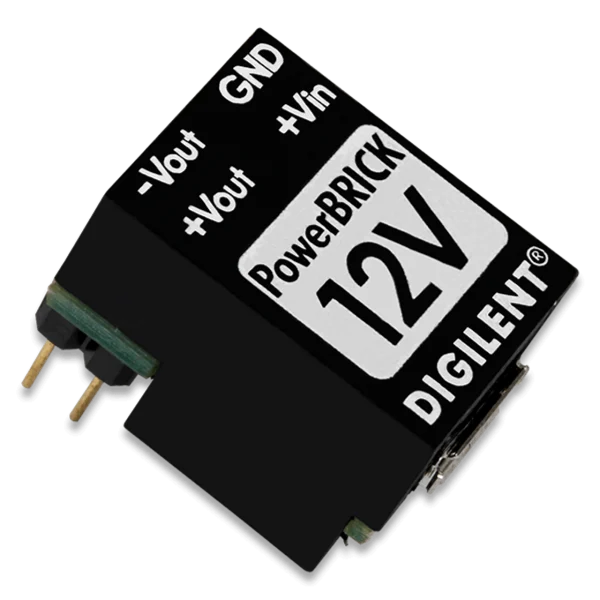

• 12V Power Brick supplies up to ±100mA

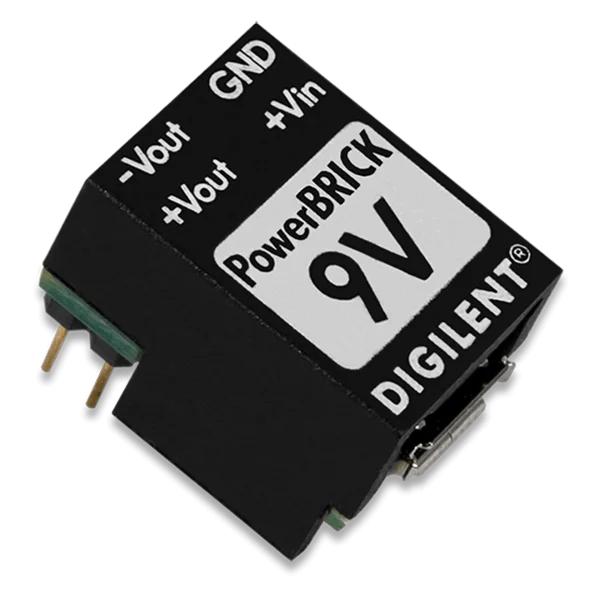

• 9V Power Brick supplies up to ±130mA)

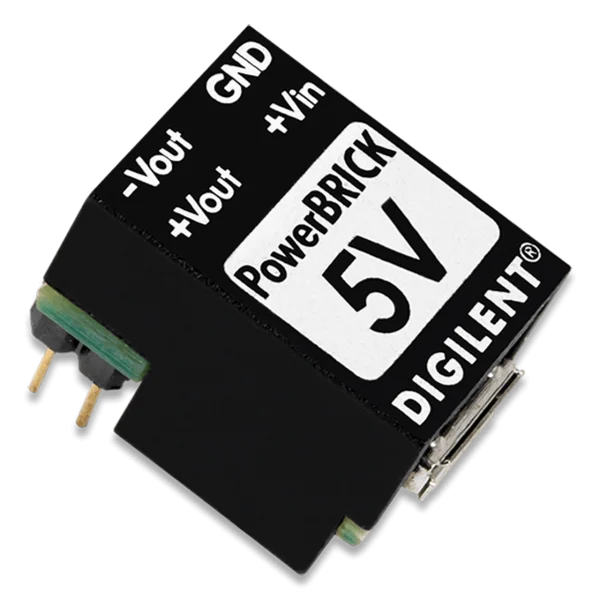

• 5V Power Brick supplies up to ±200mA)

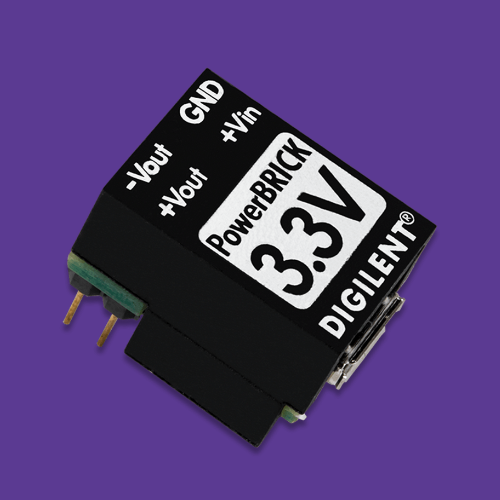

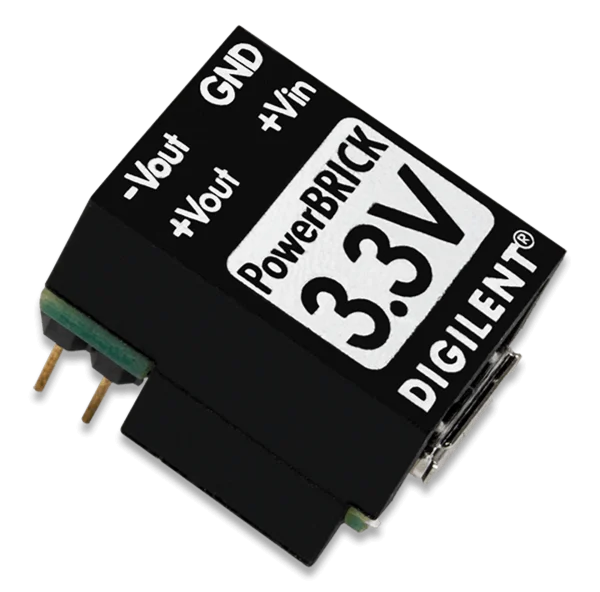

• 3.3V Power Brick supplies up to ±320mA)
• Power Output up to 1.1 W for an individual PowerBRICK
• Power Output up to 2.2 W for daisy chained PowerBRICKS

• Product Compliance:
  • HTC: 8504409510
  • ECCN: EAR99
