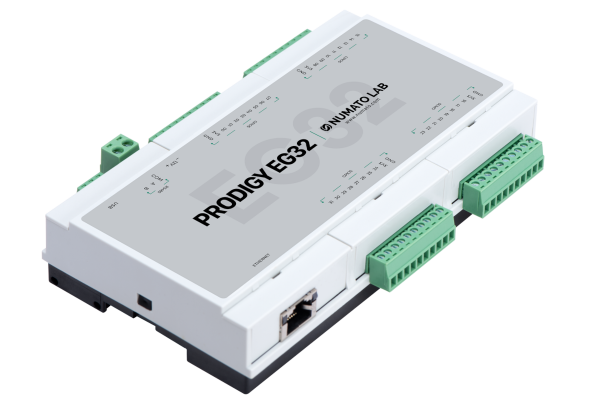

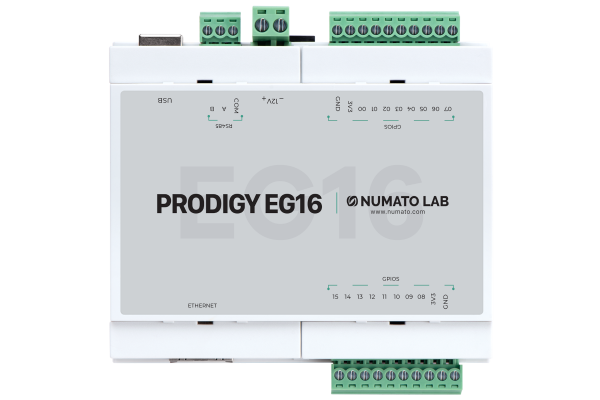

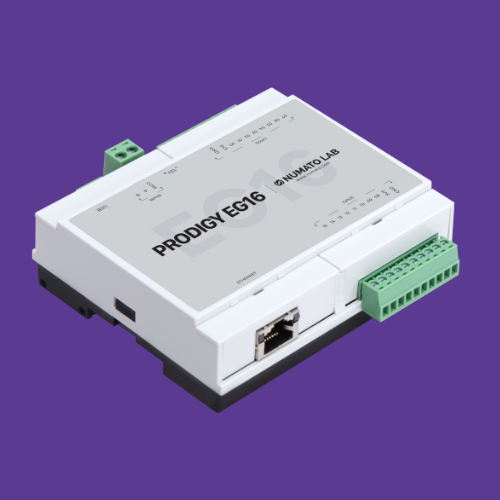

Prodigy EG16/EG32 is a Digital Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32 GPIO(3.3V) multiplexed with 8/14(Max) Analog Inputs that support it. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines, or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. EG16/EG32 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. EG16/EG32 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. EG16/EG32 supports several features such as GPIO Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.
Specifications
| Attribute | Value |
|---|---|
| Weight | 3 lbs |
| Dimensions | 11 × 8 × 3 in |
| Number Of GPIOs (Max) | 16, 32 |
| IO Voltage Max | 3.3V |
| Analog Inputs(Max) | 8, 14 |
| Analog Input Resolution | 12 Bits |
| Warranty | Standard |
| Host Interface | Ethernet, USB 2.0 CDC |
| Package Contents | Prodigy EG16/EG32- RTU/TCP x1 | USB A to B Cable x1 | LAN Cable x1(TCP) | 12V Power Supply x1 |
