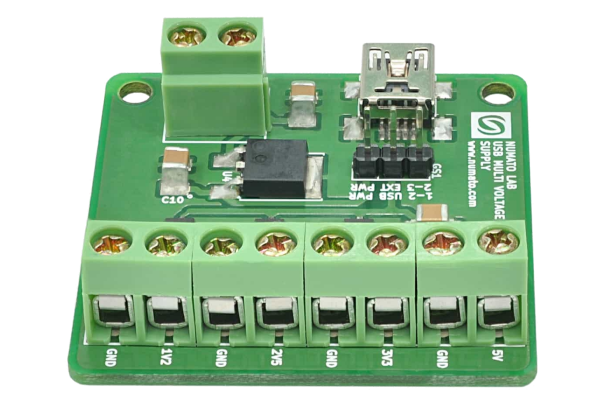

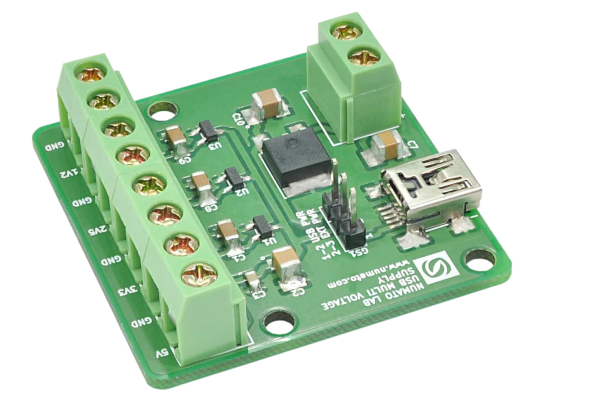

Numato Lab’s USB Multi-Voltage Supply Module is a versatile product that can power other circuits from a USB port. This board has 4 different voltage outputs. It can accept power from USB or using an external connector. There are four voltage regulators that provide output voltages 5V, 3.3V, 2.5V & 1.2V. Onboard screw terminals make it easy to attach external circuits to this board.
Specifications
| Attribute | Value |
|---|---|
| Weight | 0.1 lbs |
| Dimensions | 5 × 3 × 1 in |
| Product Dimensions | 1.70 x 1.68 x 0.55 in |
| Output Voltage | 1.2V, 2.5V, 3.3V, 5.0V |
| Max Input Voltage | 5V |
| Max Current (Total) | 350mA |
| Power Supply Type | Linear |
