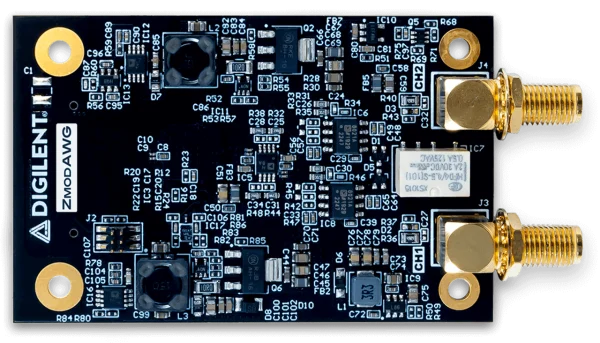

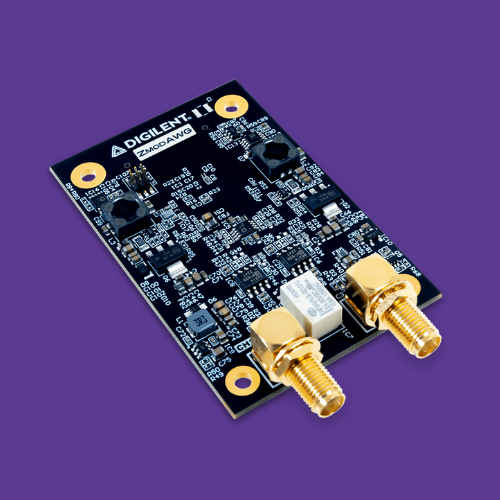

Formerly known as the Zmod DAC 1411: SYZYGY-compatible Dual-channel 14-bit Digital-to-Analog Converter Module.
The Zmod AWG is one of Digilent’s first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.
Driven by the SYZYGY carrier, the Zmod AWG can simultaneously generate two ±5V signals with 14 bits of resolution at a sample rate up to 100MS/s. Analog outputs can be connected to a circuit using SMA cables.
When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR . By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.
Features:
-
Channels: 2
-
Channel type: single-ended
-
Resolution: 14-bit
-
Absolute Resolution (amplitude ≤1.25V): 167μV
-
Absolute Resolution (amplitude >1.25V): 665μV
-
Sample rate (real time): 100MS/s
-
Output impedance: 50Ω
-
Analog bandwidth: 40 MHz+ @ 3dB, 20 MHz @ 0.5dB, 14 MHZ @ 0.1dB
-
Slew rate (2V step): 180V/μs
- Product Compliance:
- HTC: 8473301180
- ECCN: EAR99
What’s Included:
- Zmod AWG 1411
- Screws for securing the Zmod to compatible host board (4 M3x5mm)
- Digilent custom packaging with protective foam
